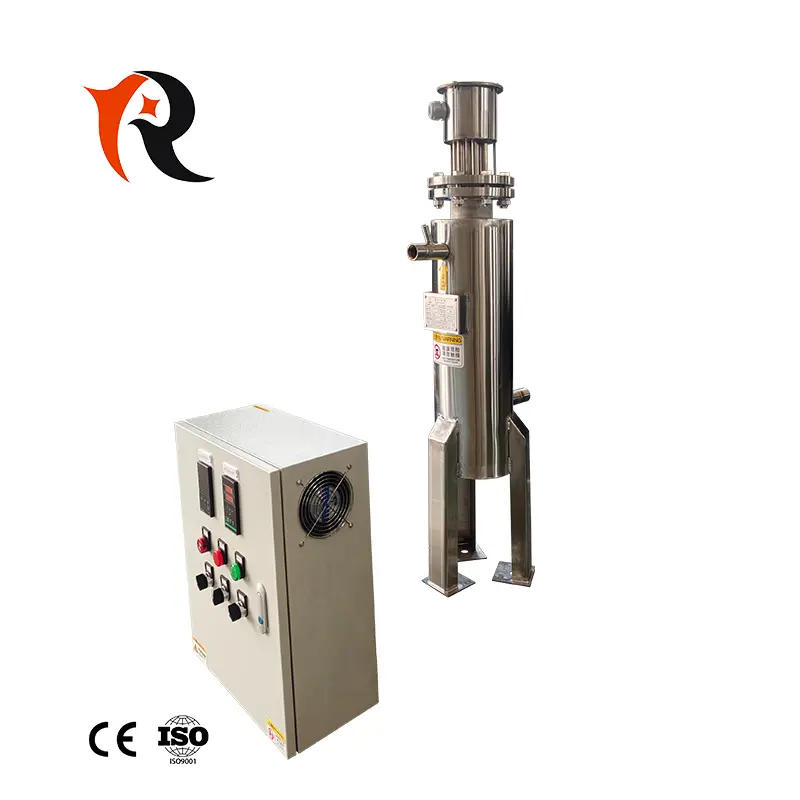

High Space Utilization Vertical Pipe Heater

Short Description:

The High Space Utilization Vertical Pipe Heater is an innovative industrial heating solution engineered to address the most common pain point in modern production facilities: limited floor space. Unlike traditional horizontal or bulky heating systems that occupy large ground areas, our vertical pipe heater adopts a vertical installation structure that concentrates all heating components along the vertical axis, cutting required floor space by up to70%compared to equivalent-capacity horizontal models.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Product Introduction

Designed for continuous industrial heating applications across chemical, food processing, pharmaceutical, textile, and energy industries, this heater delivers consistent, reliable heat transfer while helping facilities maximize usable production area. Whether you are upgrading an existing workshop with constrained space or planning a new facility with optimized layout requirements, our vertical pipe heater offers the perfect balance of performance and space efficiency.

Working principle

Pipeline electric heater is a device that consumes electrical energy to convert it into thermal energy for heating materials that need to be. During operation, the low-temperature fluid medium enters its inlet under pressure, flows through the specific heat exchange channels inside the electric heating vessel, and follows path designed based on fluid thermodynamics principles, carrying away the high-temperature heat energy generated by the electric heating elements, thus increasing the temperature of the heated medium The outlet of the electric heater obtains the high-temperature medium required by the process. The internal control system of the electric heater automatically regulates the output power of the heater according to the temperature sensor signal at the outlet, maintaining a uniform temperature of the medium at the outlet; when the heating element overheats, the independent over protection device of the heating element immediately cuts off the heating power supply, preventing the heating material from overheating, causing coke, deterioration, and carbonization, and severe cases, causing the heating element to burn out, effectively extending the service life of the electric heater.

Key Features

1. Ultra-High Space Utilization

The vertical pipe arrangement is the core advantage of this product. All heating tubes are arranged vertically along the equipment body, which means most of the equipment volume extends upward rather than outward. This design brings multiple practical benefits:
- Requires only 1/3 of the floor space of traditional horizontal pipe heaters with the same heating capacity, freeing up valuable area for production equipment or storage
- Compatible with multi-story workshop layout design, allowing installation in narrow areas that cannot accommodate large horizontal heating systems
- Simplifies on-site pipeline routing, reduces the length of connecting pipes and lowers heat loss during transmission
2. Superior Heat Transfer Performance

We use optimized fluid dynamics design for the internal pipe network, ensuring uniform flow distribution and efficient heat exchange:
- Turbulent flow design inside vertical pipes enhances heat transfer coefficient, reaching a thermal efficiency of over95%, which reduces energy consumption and operating costs
- Uniform temperature distribution across all heating pipes eliminates hot or cold spots, ensuring consistent heating quality for processed media
- Large specific surface area design provides sufficient heating area even with compact equipment size, meeting high-capacity heating requirements without expanding footprint
3. Sturdy and Durable Industrial Structure

All components of the High Space Utilization Vertical Pipe Heater are manufactured according to industrial grade standards, ensuring long-term stable operation in harsh working environments:
- Pipe materials can be selected from carbon steel, stainless steel, copper alloy, or other special materials according to the corrosiveness of the heated medium, adapting to various working conditions
- High-quality insulation layer wrapped outside the pipe body reduces surface heat loss and improves working environment safety by keeping external surface temperature below 40℃ under normal operating conditions
- Vertical structural design reduces sediment deposition inside pipes, slowing down scaling and corrosion and extending equipment service life by more than 30% compared to horizontal designs
4. Flexible and Convenient Installation & Maintenance

Despite its vertical structure, this heater is designed for easy installation and daily maintenance:
- Modular structure allows split transportation and on-site assembly, solving the problem of transportation and installation in narrow workshop passages
- Top or side pipe connections can be customized according to on-site layout, adapting to different factory pipeline systems
- Convenient access ports are reserved for regular inspection and cleaning, reducing maintenance downtime and labor costs

Product details display

The air circulation pipeline heater is composed of two parts: body and control system.Electric heating element generates heat: The electric heating element in the heater is the core part of generating heat. When an electric current passes through these elements, they generate a lot of heat.

Forced convection heating: When nitrogen or other medium passes through the heater, the blower is used to force convection, so that the medium flows and passes through the heating element. In this way, the medium, as a heat carrier, can effectively absorb heat and transfer it to the system that needs to be heated.

Temperature control: The heater is equipped with a control system including temperature sensor and PID controller. These components work together to automatically adjust the output power of the heater according to the outlet temperature, ensuring that the medium temperature is stable at the set value.

Overheating protection: In order to prevent overheating damage to the heating element, the heater is also equipped with overheating protection devices. As soon as overheating is detected, the device immediately cuts off the power supply, protecting the heating element and the system.

Technical Specifications

Parameter	Unit	Specification Range	Remarks
Heating Capacity	kW	50 - 5000	Customizable according to requirements
Design Pressure	MPa	0.1 - 1.6	Higher pressure grade available on request
Working Temperature	℃	≤ 350	Depends on heating medium and material
Floor Area	m²	1.2 - 8.5	For 50 - 5000kW capacity range
Thermal Efficiency	%	≥ 95
Standard Material	-	Carbon Steel / 304 Stainless Steel	316L, Hastelloy available
Heating Method	-	Steam Heating / Hot Water Heating / Heat Transfer Oil Heating / Electric Heating

Product application

The High Space Utilization Vertical Pipe Heater is suitable for a wide range of industrial heating scenarios, especially for facilities with limited floor space:
- Chemical Industry:Preheating of raw materials, heating of reaction media, concentration of solutions, and heat preservation of chemical products
- Food & Beverage Industry:Pasteurization, heating of syrups, sterilization of liquid products, and hot water supply for cleaning processes
- Pharmaceutical Industry:Heating of API production processes, sterile medium heating, and clean heat supply for production workshops
- Textile & Printing Industry:Hot air supply for dyeing processes, heating of finishing liquids, and heat supply for drying lines
- Petroleum & Energy Industry:Viscosity reduction heating for heavy oil, heat tracing for gathering pipelines, and waste heat recovery of industrial fluids
