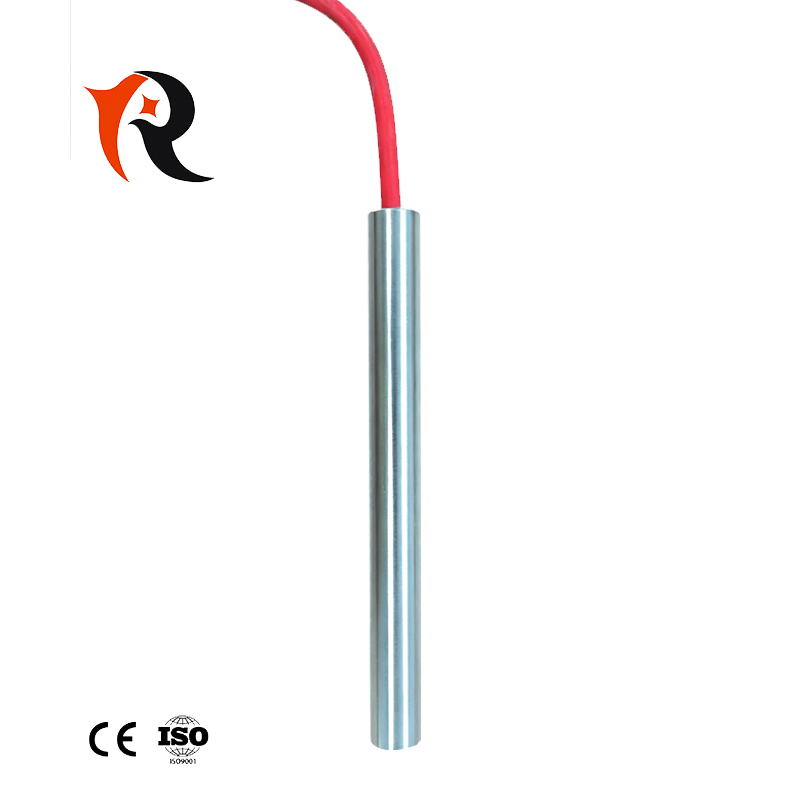

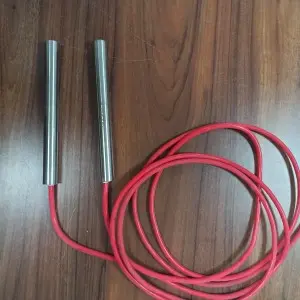

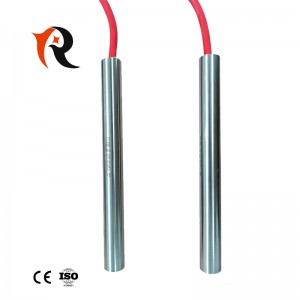

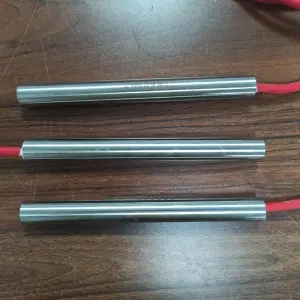

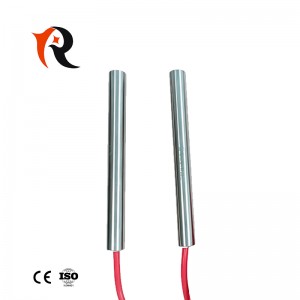

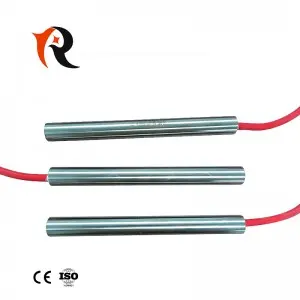

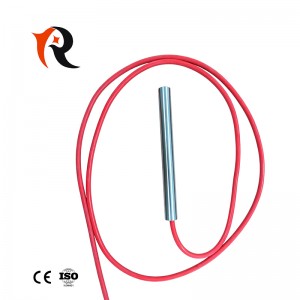

Single-head Heating Tube of Packaging Sealing Machine

Short Description:

The single-head heating tube of the packaging sealing machine is a high-performance heating component specially designed for continuous sealing operations. It adopts a single-ended sealed heating structure, with a compact size, fast heating speed, and stable heat output. It is suitable for thermal sealing of packaging materials such as plastic films and composite films, and can provide uniform and reliable heating for the sealing jaws of various continuous sealing machines.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Product Overview

Technical Specifications

Product Name	Single-head Sealing Machine Heating Tube
Application Scenario	Packaging sealing machine
Structural Type	Single-head sealed design
Heating Principle	Resistance heating
Shell Material	Stainless steel
Insulation Material	High-purity magnesium oxide powder
Heating Wire Material	Nichrome alloy
Sealing Method	High-temperature resistant sealant sealing
Operating Temperature Range	As you need
Rated Voltage / Power	As you need
Tube Diameter / Length	As you need
Lead Wire Specification	High-temperature resistant lead wire, length as you need
Insulation Resistance	≥ 50MΩ (at room temperature)
Pressure Withstanding Voltage	1500V / 50Hz, 1 minute no breakdown

Product Features

Single-head sealed design: The heating wire and lead wires are sealed at one end, with a compact structure that is easy to install in the narrow space of the sealing jaw, suitable for the space constraints of continuous sealing machines.
Fast and uniform heating: High thermal conductivity magnesium oxide filling ensures fast heat transfer and uniform temperature distribution on the tube surface, providing stable and consistent sealing quality.
High temperature resistance and corrosion resistance: The stainless steel shell has good oxidation resistance and corrosion resistance, adapting to the high-temperature working environment of the sealing machine.
High safety and reliability: High-temperature sealant sealing prevents moisture and dust from entering, ensuring stable electrical performance and long service life.
Strong compatibility: Suitable for most domestic and imported continuous sealing machines of the same specification, flexible replacement.

Common Troubleshooting

Fault Phenomenon	Possible Cause	Solution
Heating tube does not heat up after power on	Poor lead wire contact or wire breakage; heating wire burnout	Check wiring and reconnect firmly; if heating wire is burnt out, replace the heating tube
Slow heating speed	Voltage mismatch; insufficient contact with sealing jaw	Confirm rated voltage matches the equipment; reinstall to ensure close contact
Poor sealing quality, uneven sealing	Uneven tube surface temperature; loose fixing, heat conduction barrier	Tighten fixing screws; clean installation surface to ensure good heat conduction
Electric leakage of heating tube shell	Moisture enters the tube; insulation layer is damaged	Stop using immediately, dry test the tube; if insulation is still unqualified, replace it

Precautions

Warning:

Please cut off the power supply during installation and maintenance; live operation is strictly prohibited.

The rated voltage and power of the heating tube must match the original parameters of the equipment. Do not use it beyond the rated range to avoid burning out the tube or causing safety accidents.
During installation, handle the heating tube with care; avoid strong impact and bending to prevent damage to the internal heating wire and insulation layer.
Do not touch the surface of the heating tube during operation to avoid scalding. Wait for the tube to cool down completely before performing maintenance operations.
Regularly check the insulation performance of the heating tube and the firmness of the wiring. If abnormal heating or poor insulation is found, stop using it immediately and replace it in time.
The heating tube should be used in a dry environment; avoid water immersion to prevent insulation breakdown and electric shock.
When replacing the heating tube, it is recommended to use original or matching qualified products to ensure sealing quality and equipment safety.
